- Supercoil

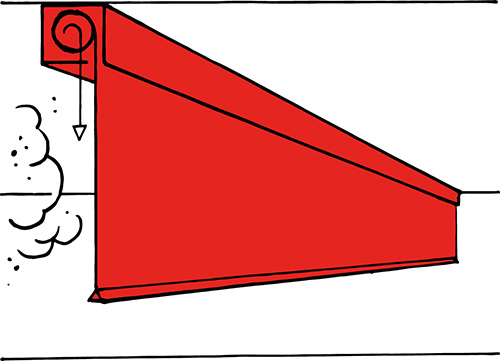

Supercoil is outstanding for its flexibility in the implementation of made-to-measure solutions. The smoke apron consists of one web part up to 50 m in width and features a drop length of 9.5 m. It is designed for high time classes at temperature loads up to 600 0C (D) and 1,100°C (ETK curve - DH). If guide rails are used, the smoke apron ensures that zero smoke escapes over the entire width of the apron. Thanks to the 'Gravigen' drive motor the apron closes without external energy. Supercoil is also suitable as a floor-closing and partition-forming smoke apron and can be equipped with an opening that allows persons to pass. Furthermore, the clever design allows for a combination with the passable Stripecoil smoke apron.

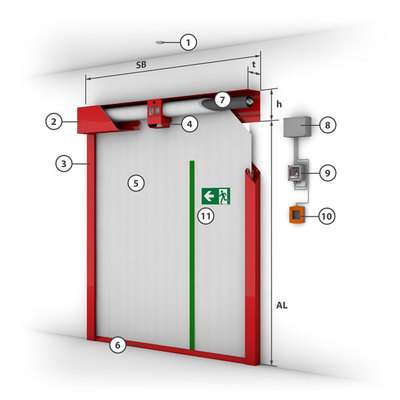

- Smoke detector
- Casing
- Side guide
- Fixing bracket
- Fabric
- Closing element
- Tubular motor
- Control module
- Control with operating unit
- Manual release
- Wicket door (optional)
- Moducoil
Prefabricated individual modules are lined up as a unit to form a complete smoke apron up to any lengthStandardised drop lengths up to 7 m Designed for the time class and temperature loads D = 600 °C As standard with "Gravigen" drive system i.e. closing without external energy, fire-resistant cables are not necessaryRobust drive systems, suitable for a high number of cycles up to 1,000 cycles with approved locking devices Modular mounting of the winding casings on top of or next to each otherConnected closing strip across all modules Also suitable (approved) for use as a floor-closing smoke apron and with lateral guide rail option.
- Smoke detector
- Casing
- Fabric
- Closing element
- Tubular motor
- Control module
- Control with operating unit
- Manual release
- Stripecoil

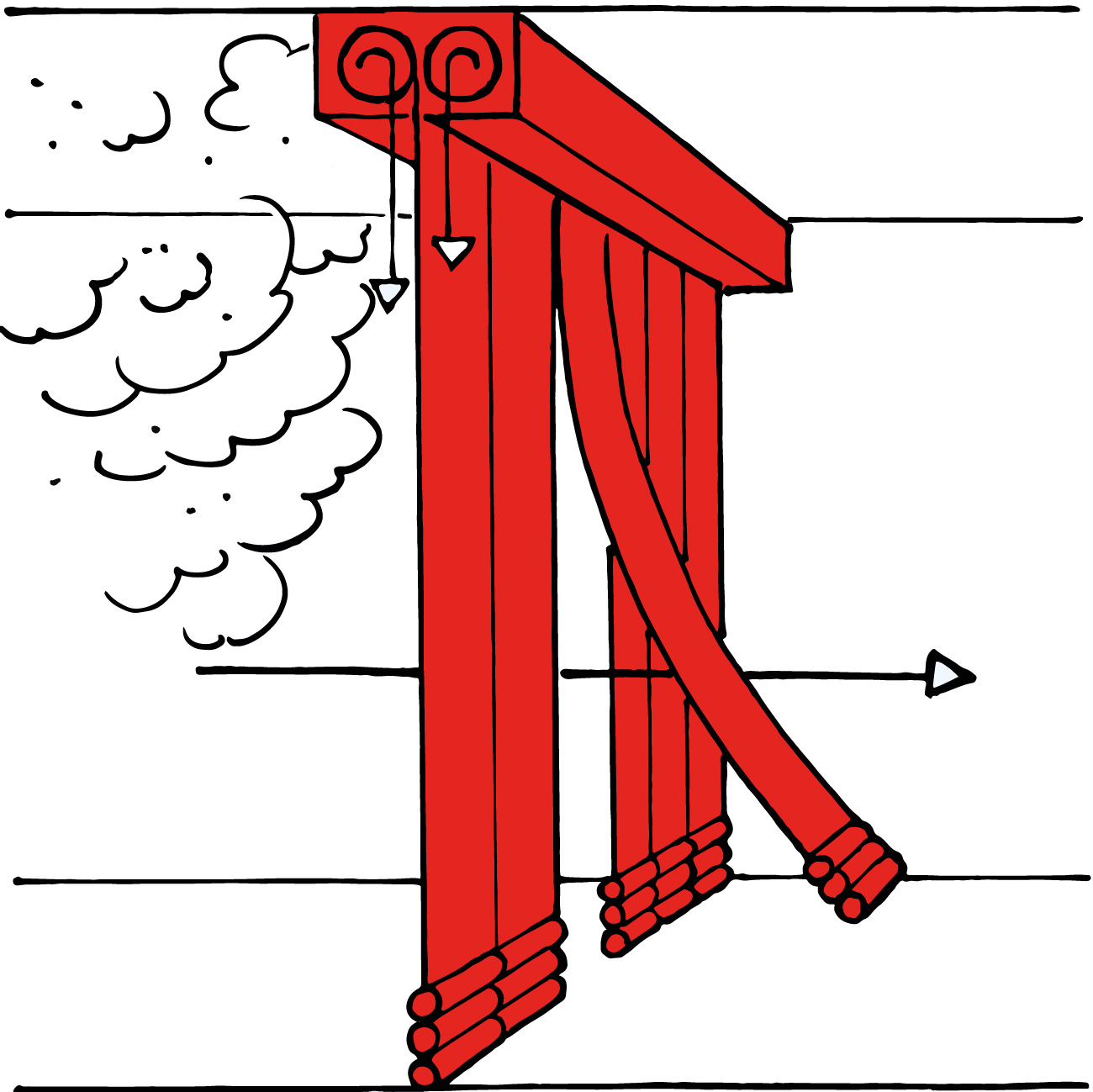

The passable and floor-closing smoke apron. Stripecoil is the optimum smoke protection for foot traffic areas and escape routes - designed for the temperature class according to DIN EN 12101 to D120 (heat resistance over 120 minutes at a test temperature of max. 600°C) and DH30 (heat resistance over 30 minutes at test temperature according to the unit temperature curve. A width of only 3 m is sufficient to allow about 200 people ( including prams and wheelchairs) to pass through the passage per minute. A soft and yielding closing edge of the individual fabric strips helps to minimize the risk of injury. The smoke barrier closes without external energy thanks to the "Gravigen" drive system.

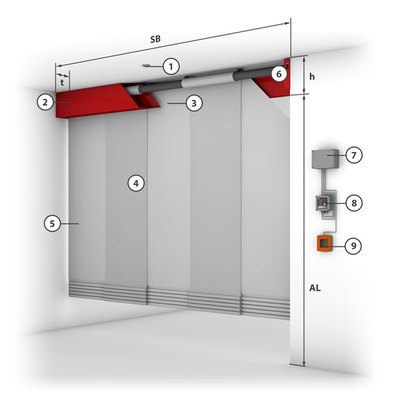

- Smoke detector
- Casing
- Side guide
- Fixing bracket
- Fabric
- Closing element
- Tubular motor
- Control module
- Control with operating unit
- Manual release
- Smokeshield-S
Rectangular and polygon-shaped floor space of the smoke apronEdge dimensions up to 16 m and drop lengths up to 6 mFor high time class and temperature loads D120 (600 ° C)No remaining openings – neither in the upper area nor in the cornersNo supporting structure required – absolutely tight even in high pressure load situationsLow installation height of the housing of approx. 125 mm and a drop length of < 3.0 mAs standard with "Gravigen" drive system i.e. closing without external energy, fire-resistant cables are not necessaryRedundant drive systems provide fall protectionAlso suitable (approved) for use as a floor-closing smoke apron

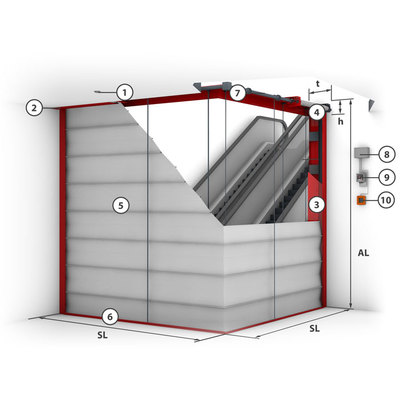

- Smoke detector
- Casing
- Side guide
- Tubular motor
- Fabric
- Coil
- Control module
- Control with operating unit
- Manual release
- Smoke Curtain GX

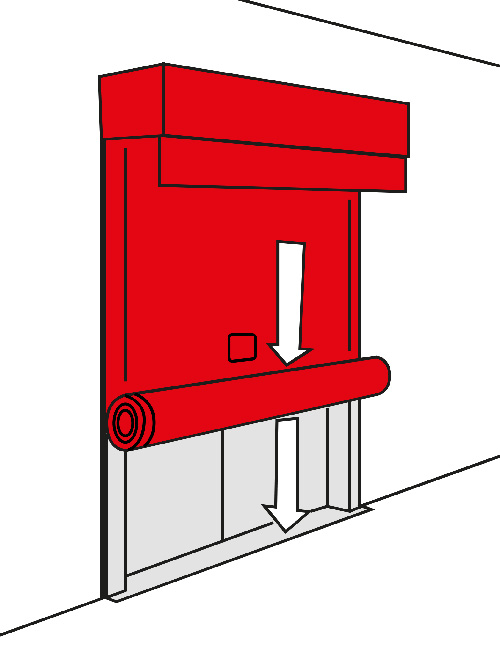

The Smoke Curtain GX is designed for elevators to prevent the spread of smoke via elevator shafts to other levels. Standard system dimensions are up to 10' x 10'. Oversized designs up to 12’ x 12’ can be produced but require clarification. The automatic mechanism allows the housing flap to open and close automatically. The flexible magnetic strips are attached to the edges of the fabric which then creates a tight seal with the auxiliary rails upon deployment. The design is integrated into the space almost invisibly to create a visually appealing look. The system is operated by a gravigen motor with a fail safe operation using 110V AC / 24V DC. Optional a hold open time of 20 minutes in case of power loss is available.

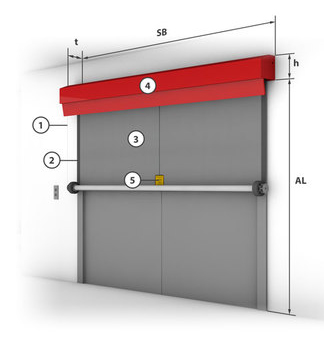

- Aramid cables
- Magnetic strip
- Fabric (clear transparent)
- Housing
- Switch for re-opening
- Fixed Smoke Apron
Large dimensions are possible, unlimited widths, heights depending on prevailing wind pressure, pendulum suspended or fixed (in the side and bottom area), designed for time class and temperature load D=600°C, extremely low weight load on the building structure, fabric between 0.4 and 0.7 kg/sqm, very lightweight shield for continuous systems, e.g. tubes, ventilation lines, ventilation ducts, cable racks suitable (approved) also as a floor-closing smoke apron. The number of penetrations through the curtain can be continuously expanded and changed during the usage period.
- Mounting module
- Fabric
- End Strip
- Penetration Cuff
